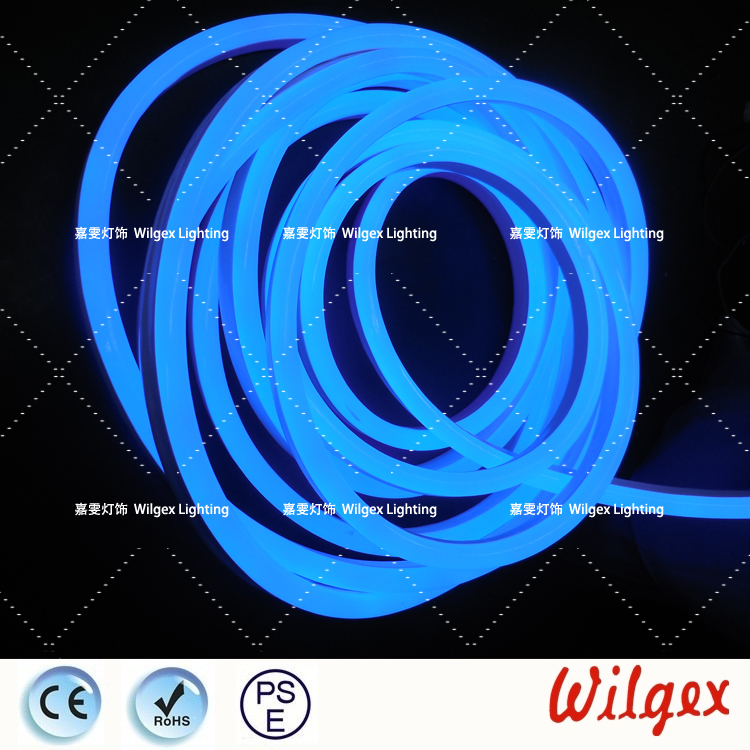

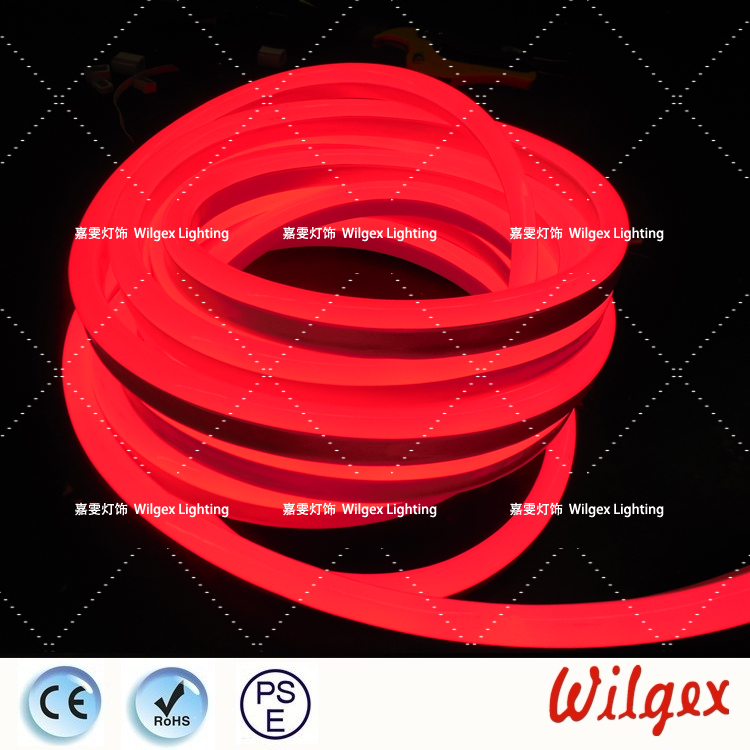

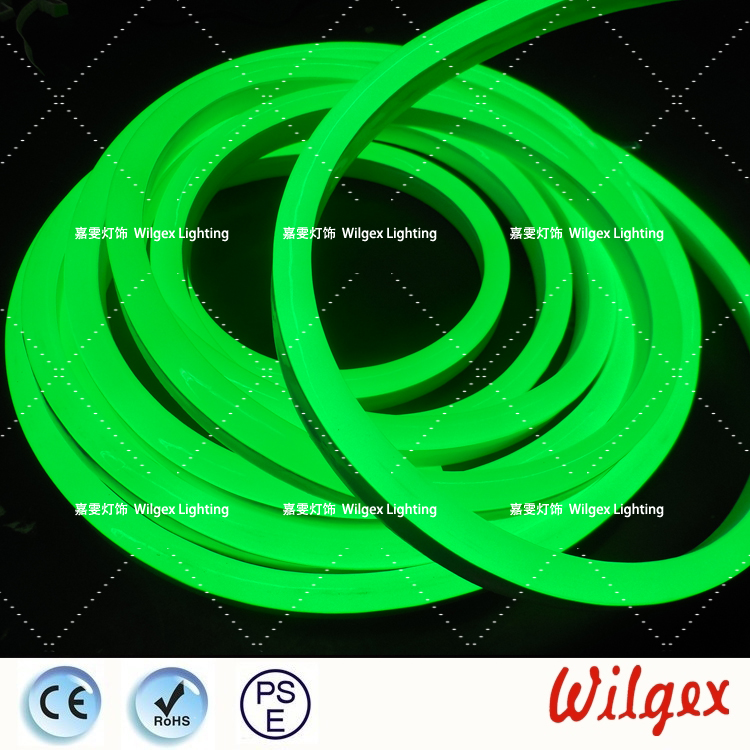

Super brightness 24V DMX RGB Neon Flex
|Unit Price:||USD 2.5 - 2.99 / Meter |
|Terms of Trade:||FOB|
|Min. Order:||100 Meter|
|Delivery Time:||7 Days|
|Packaging:||Small batch customization packing for LED flex strips|
|Productivity:||10,000 meters per day|
|Place of Origin:||China|
|Supply Ability:||10,000 meters per day|
|Certificate:||CE/ RoHS / PSE/ EMC / LVD/FCC|
|Port:||EX-factory Dong Guan City,Shenzhen,Guangzhou|
Model No.: WJ-NF-SMD5050-15*26mm-24V-RGB
Type: Flex LED StripFlex LED Strip
Lamp Body Material: PVC
LED Type: SMD 5050
IP Rating: IP65
Certification: CE, CCC, RoHS
Dimension: 9* 15mm Size ( Dome And Flat Surface)
Bend Toleraces: 12cm
Package: 10M/ Roll ; 20M/ Roll ; 100M/Roll
Package Size: 33.5*33.5*39cm
Running Length: Single Feed: 20meters
Product Type: Linear LED Flex Strips
Keywords: LED Flex Neon Tube
LED Type & Qty: SMD2835 In Epistar Chip 96 Pcs /meter
Cutting Length(Unit): 12.5cm Based On 24V DC
RGB Neon Flex lights are an innovative LED product replacing the classic glass neon tubes. They can be used at every surface including edges and corners. And RGB neon flex is the most reliable color changing flexible neon product. It is the product of choice in flexible LED lights for building, garden,bridge or any other commercial application requiring alternating colors.
RGB Neon Flex delivers remarkably fluid color transitions lighting effect by utilizing advanced DMX and LED dimming technology.
#1, Striking and Unique Accent Lighting for building outline
#2, Overall Luminous Effect with High Brightness
#3, Specilized PVC extrusion make it UV, flame and chemical resistant and IP68 rated.
#4, Can be safely located outside even in salty envioronments, on the boat/yacht or by the sea
#5, Easily to be installed at different surface material with a special track
#6, 24V Low Volage, Low Heat Dissipation and Durability
#7, Flexible, Anti-broken and Extremely Safe
#8, Cut into any length and Bent into different shapes/patterns/text
#9, Excellent flexibility, can be bent arbitrarily and tailored easily for any ads signs and DIY board
The features & benefits of our LED neon flex as below:
• 4 Durability, Impact Re
• 5 Minimal heat dissipation (Safe to the touch)
• 6 Longer life to 50,000 Hours, 3 years warranty
• 7 Extremely low maintenance costs
• 8 70% less energy consumption of glass neon
• 9 Does not interfere with Video/Audio systems nearby
• 10 Available in all single colors, RGB colors & Digital RGB colors
Dimensions: 9*15mm / 10*20mm /15*26mm ( Three opinions for your choice )
LED Light SMD 2835 LED Chip named Epistar brand
Running Length Single feed: 20 meters based on 24V version
Light Surface profile ( Dome surface and Flat surface )
Lumen Maintenance 70,000 Hours L70 @ 25°C : 90,000 L50 @ 25°
50,000 Hours L70 @ 50° : 70,000 Hours L50 @ 50°C
Chromaticity Ordinates x: 0.4715 y: 0.4279 u: 0.2624 v: 0.5354
Color Bin Tolerances +/- 3 %
Efficacy (lm/w) 41.42/W , Lux : 393 Lm / meter
Input Voltage: 12 V , 24V, 110V, 220V Constant Voltage
Power Consumption 9 watts per meter
Power Factor ≤ 1
LED Count per meter / 22 per foot
Dimming 110-277v, 0- 10v & Magnetic Low Voltage
Materials Polyvinyl Chloride (PVC)
LED Spacing 16.7 millimeter / .66 inch
Cutting Length 41.66 millimeters / 1.64 inches
Package Size: 33.5 × 33.5 ×39.1cm
Package Weight: 26 kilograms
Thermal Management Cool to the Touch, Free Air Convection
Fixture Connections Front & End Leader Cables
Maximum Diameter 120 millimeters / 4.7 inches
(lateral bending only)
Ambient -30° to 45° Celsius / -22° to 113° Fahrenheit
Operating -30° to 45° Celsius / -13° to 113° Fahrenheit
Humidity 0- 95% Non Condensing
Different shape and different size of led flex neon tube for options:
Internal Structure of LED neon rope lights:
*** Why do we use the copper conductor?
Advantage: 1, Extand the running length to 20M~25M without electrical current drop.
2, Resist pulling force
Disadvantage: 1, Bring the increased cost of raw material
2, Bring the increased cost of labor
Most up-to-date technique applied to make sure the brightest light, stable quality and longest lift span
Minimum 4.17cm unit cutting length
Maximum efficiency and minimum project length to satisfy customized projectsExcellent flexibility, it can satisfy any requirement of construction
1, Following the cutting mark showed in picture
2, Cut at cutting mark using heavy scissors (recommended using garden pruning shears, hose cutters or box cutter), be sure to cut the line square and not on an angle
3, Trim loose wires, don`t forget to trim any loose wires hanging out, flush to the PVC with sharp side cutters or scissors.
4, Using a pliers hold connecting pin and insert the pointed end of the electrical pin into the end of neon flex, the pin must be installed on the right side or it will not line up with the end cap on the power cord.
5, Using silicone sealant glue, seal the power cord cap
6, Aligning the pins with the receptacle holes in the place
7, Locate the heat shrink tube
8, Using silicone sealant glue, seal the end cap
9, Using the heat gun, gently warm the heat shrink tube until it shrinks into its final resting places, after completed, seal around both ends of the shrink tube with silicone sealant glue.
Accessories of LED flex neon tube
Old version(IP65 rated):
Aluminum tracks: Silver color and Black color for your opitons:
Ⅰ, 5CM in length mini Aluminum Track for LED neon flex
Ⅱ, 1M, 2M or 3M in length Aluminum Profile for LED neon flex
Installation method of old version LED neon light connections:
New Version connecter with cable for LED neon lights(IP68 rated)
End Exit Cable Side Exit Cable Bottom Exit Cable
Wilgex will provide you a total solution for all your customized requirements of your LED Neon flex projects.
WILGEX is a professional LED neon flex & LED outdoor lighting manufacturer and exporter. It is comprised of both highly experienced lighting professionals and technicians. As well as yound and forward-thinking staff.
At WILGEX, our core competency is innovative designs and marketable product choices. Utilizing moden technologies to inspire and challenges us, and to improve our production capabilities.
1, Small batch packaging (10 M/ Roll)
2, Commercial consumer packing. (20 M/Roll)
3,Huge project packaging. (50 M/Roll)
We have over 15 years of professional experience in this field. Through the complete and rich information, you will easily find satisfactory services to meet your market demands.
We are located in Dongguan City, Guangdong Province and established in 2003. Our firm has developed as a strong business group consisting of three major business entities - Dongguan Wilgex Lighting Co.,Ltd ( in Dongguan factory) and Wilgex Limited ( In HongKong headquater)
We have a 2,000-square-meter factory and 124 experienced workers to produce different products. We strongly believe both the quality of our products and the productivity of our factory will fulfill any of your market needs.
We can deliver your orders within 12 days.
Quality Control personnel who are all experts in their respective product assignments check the quality at every stage of production, from the incoming raw materials to finished products. Before we send the finished products, each product will be strictly tested for 24 hours all along. And we have the strict testing report for every processing. All our operations are ISO9001:2000 certified and our products are CE and RoHS standards compliant.
Our raw material (LED) comes from Cree, Taiwan Epistar and Edison. And our all products (Nichia patented) can be available for Osram, sold in Europe and Japan. Our products show extremely long life span and stability in the function. We guarantee the lifespan of over 50,000 hours. The average light output after 10,000-hour lighting will be 93% of the original brightness. We also offer the long product warranty of our finished products (Not less than 3 years).
Our major business partners spread over the United States, Canada, Europe and the Middle East. Our services include developing our own products as well as making OEM manufacture for our clients to meet different market demands. We have a group of highly professional and experienced salesmen in mainland China, Dubai, Hong Kong and Chicago to best serve our clients. With our professional knowledge, experience and great sense of market, we have strong confidence to provide the best LED lights you need. Please contact us for the best services you can ever get.
We make a variety of LED lighting including the following series:
LED Neon Flex series
LED light strips
LED wall washer lights
LED underwater lights
Outdoor LED decorative lightings
- Company Name: Dongguan Wilgex Lighting Co., Ltd.
- Representative: SUN JIAN BO
- Product/Service: Led Neon Flex , Led Neon Tube , Led Neon Rope Light , Led Wall Washer , Underwater Lights , Led Flood Lights
- Capital (Million US $): 2,000,000RMB
- Year Established: 2008
- Total Annual Sales Volume (Million US $): Above US$100 Million
- Export Percentage: 91% - 100%
- Total Annual Purchase Volume (Million US $): US$50 Million - US$100 Million
- No. of Production Lines: 7
- No. of R&D Staff: 5 -10 People
- No. of QC Staff: 11 -20 People
- OEM Services Provided: yes
- Factory Size (Sq.meters): 1,000-3,000 square meters
- Factory Location: 2nd Floor, 7B block, Minyi Road, 6th Industrial Park, Wusha District,Changan Town, Dongguan City,Guangdong Province.
- Contact Person: Mr. Alex sun
- Tel: 86-769-81553949
